Precision Fiber Laser Cutting machine MCT-4060

Precision cutting machine technical parameters

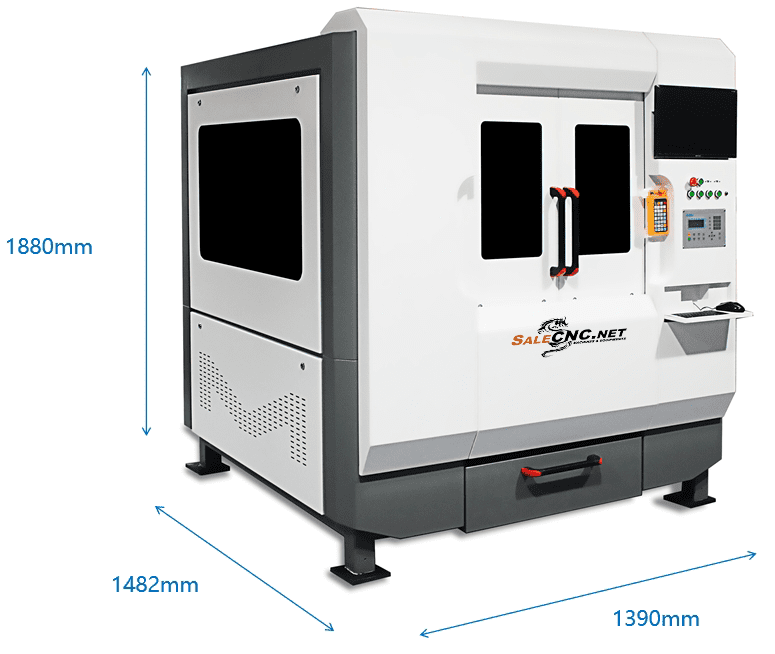

MCT-4060 appearance dimensions :

Youtube: https://youtube.com/shorts/bCThahA46bM?feature=share

1. Model features

•  This machine adopts a customized fully enclosed cutting control system and imported linear motor, which has high precision, fast speed and twice the processing capacity of the small screw platform.
• It adopts an integrated design of marble platform frame, with reasonable structure, safe and reliable, imported linear motor platform, imported cutting head, and can be equipped with fiber lasers from any manufacturer.
• Using advanced fiber laser, it has good beam quality, high electro-optical conversion efficiency, stable performance, no reflective lens, no need to adjust the optical path, which can greatly save energy consumption during work, extremely low operating cost and basically maintenance-free, and the service life can reach more than 100,000 years. Hour.
• Fixed optical path design, maintenance-free optical path, low operating cost, good cutting quality and high processing efficiency.
• The cutting head uses Jiaqiang and capacitive sensing, which has high sensing accuracy, sensitive response, and stable and reliable performance.
• The CNC system adopts a dedicated laser control system and an imported non-contact height tracking system. It is responsive and accurate, is not affected by the shape of the workpiece, and can process any graphics.
• And professional CAM software, with powerful functions, stable operation, simple operation and easy to learn.
• The machine tool adopts a CNC structure, and the body adopts an integral welded structure, which undergoes vibration aging treatment, which can completely eliminate welding and processing stress, and has the advantages of good rigidity, high precision, and no deformation.
• The guide rail adopts fully enclosed protection to reduce dust pollution. It is driven by imported high-precision linear motors and guided by imported high-precision linear guide rails.
• It adopts imported guide transmission components and linear motors, with high precision and high speed.

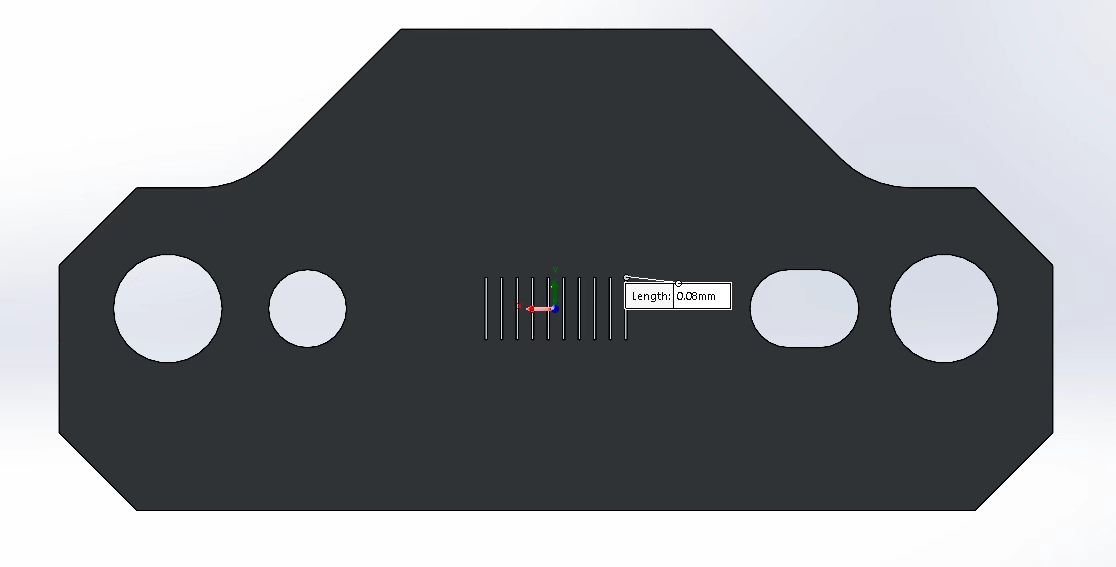

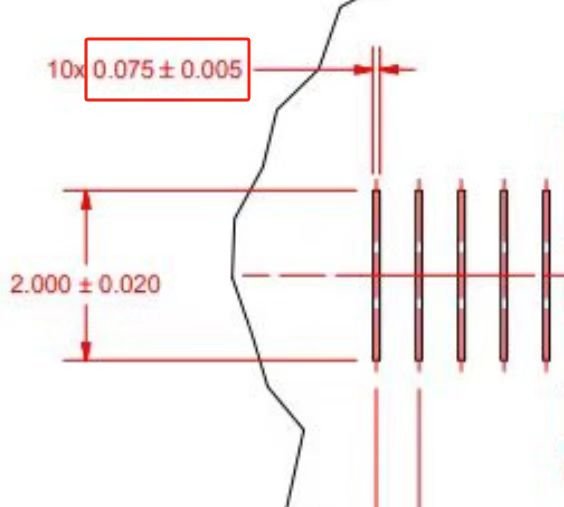

• Various graphics or text can be designed at will for instant cutting, and the operation is simple, flexible and convenient; the cutting edge is smooth and flat, the cutting heating area is small, and it is not easily deformed.

2. Technical parameters

Project	Technical parameters
Cutting product accuracy	±0.05mm
Through hole minimum hole diameter	0.1mm
Processing materials	Copper	Aluminum	Titanium	Lithium	Silicon	Gold	Silver	Stainless Steel
Effective cutting size	400mm×600mm
Fixed method	Pneumatic edge clamping and fixture support
Drive system	Magnetic levitation linear motor
Positioning accuracy	≦+/-0.008mm
Repeat accuracy	0.008mm
Laser brand	Chuangxin (14 cores)
Laser average power	1000W
CCD alignment accuracy	10um
Cutting air source	Air
Cutting line width	0.1mm
Cutting section	Smooth, no burrs, no black edges
Laser transmitter life	100,000 hours (10 years)
Laser warranty period	1 year
Chiller warranty period	1 year
Overall warranty period	1 year (except wearing parts)

3. Main parts and details

key components	Key component brands		Origin
Machine tools (motor type)/X-axis mover AUM3	Jacobs		Singapore
Machine tools (motor type)/X-axis stator AUM3	Jacobs		Singapore
Machine tools (motor type)/Y1/Y2 axis mover AUM4	Jacobs		Singapore
Machine tools (motor type)/Y1/Y2 axis stator AUM4	Jacobs		Singapore
Machine tools (motor type)/Z axis EMS-TF-0130A-532	Dayan industrial control system		Shenzhen
Guide rail/X axis SHS15R2SSC1	THK		Japan
Guide rail/X axis SHS15R2SSC1	THK		Japan
Scale/reading head	Renishaw		U.K.
Guide rail/Z axis KKR6005C	Jinwangda Electromechanical		Shenzhen
Servo system/X1ASD240-0309	Jacobs		Singapore
Servo system/Y1/Y2 axis ASD240-0418	Jacobs		Singapore
Servo system/Z EAS-R1-PA2R8	Dayan Industrial Control		Shenzhen
Control system PC/CNC	Baichu Electronics		Shanghai
Control system PC/CNC	Baichu Electronics		Shanghai
Control system PC/CNC/follow-up system BC100	Baichu Electronics		Shanghai
Control system PC/CNC/control software CypCut-6.3	Baichu Electronics		Shanghai
Water cooling system/cooler	Special domain electromechanical		Guangzhou
Computer system/windows 10 industrial computer	Yan’an Electronics		Shenzhen
laser cutting head	Jiaqiang		Shanghai
Base/marble/steel base	custom made		Shandong
Sensor/limit/origin 674A-WR*NPN	Omron		Japan
CCD vision system	Hikvision		Zhejiang

4. 1000W cutting parameters

Material	Thickness (mm)	speed （m/min）	air pressure （MPA）	Gas	Copper mouth size	Cutting height
Stainless steel	1	12.0-18.0	1	N2	1.5（one）	0.6
	2	4.0-5.0	>1.1	N2	1.5（one）	0.6
	3	2.0-4.0	>1.5	N2	2.0（one）	0.6
	4	1.2-1.6	>2.0	N2	3.0（one）	0.6
	5	0.7-1.2	>2.0	N2	3.0（one）	0.6
carbon steel	1	7.0-9.0	1	O2	1.25（pair）	1
	2	4.0-5.0	0.5-0.8	O2	1.25（pair）	1
	3	2.5-4.0	0.25-0.4	O2	1.25（pair）	1
	4	2.2-3.1	0.15-0.2	O2	1.25（pair）	1
	5	1.6-2.5	0.15-0.2	O2	1.5（pair）	1
	6	0.8-1.2	0.10-0.15	O2	1.5（pair）	1
	8	0.6-0.9	0.10-0.15	O2	2.0（pair）	1
	10	0.6-0.72	0.10-0.15	O2	2.0（pair）	1

5. Air compressor parameters

Nominal power	HP	15KW
Volume flow	3²/min	1.2
Intake air temperature	℃	≤35
exhaust temperature	℃	≤60 (After cooling)
Installation method		Nofoundation installation indoors
Full load pressure	Mpa	3.0
Power supply needs	V/Hz/Ph	380/50/3
Cooling method		air cooling
Motor grade		IP54
Insulation level		Class F
Number of machine heads	个	1
Overall dimensions	Mm
Overall air consumption	1.2m³/min
Air source pressure	30Kg
Air source quality level	Oil content 0.01ug/m³
